Cu lug ICF Railway Series
For Solderless Crimping to Copper Conductor
|

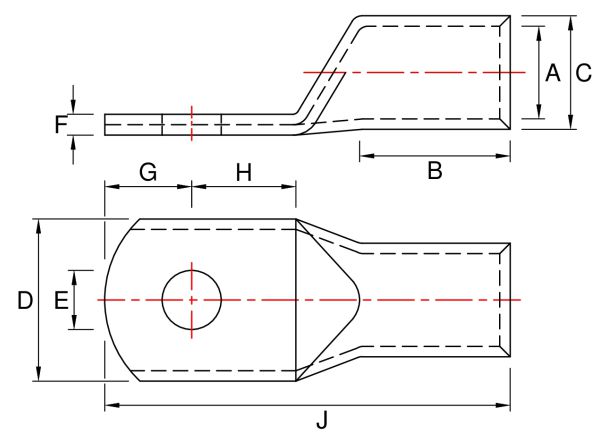

Dimensions in mm
|
||||||||||
|
Cable Size mm2
|
Stud Hole Size
|
Barrel ID
|
Barrel OD
|
Palm Width
|
Palm Thickness
|
Barrel Length
|
Stud Center Distence from Bend
|
Stud Center Distence from Top
|
Total Length
|
ASCON’S CAT.NO
|
|
E
|
A
|
C
|
D
|
F
|
B
|
H
|
G
|
J
|
||
|
11-17
|
5.2
|
6.0
|
8.5
|
11.9
|
2.5
|
14
|
10
|
6
|
33
|
ACUS-106
|
|
6.5
|
6.0
|
8.5
|
11.9
|
2.5
|
14
|
10
|
6
|
33
|
ACUS-145
|
|
|
8.2
|
6.0
|
8.5
|
16.0
|
1.7
|
14
|
11
|
9
|
37
|
ACUS-146
|
|
|
10.2
|
6.0
|
8.5
|
16.0
|
1.7
|
14
|
11
|
9
|
37
|
ACUS-109
|
|
|
17-23
|
5.2
|
7.1
|
10.2
|
14.3
|
3.1
|
18
|
10
|
7
|
39
|
ACUS-107
|
|
6.5
|
7.1
|
10.2
|
14.3
|
3.1
|
18
|
10
|
7
|
39
|
ACUS-147
|
|
|
8.2
|
7.1
|
10.2
|
14.3
|
3.1
|
18
|
10
|
7
|
39
|
ACUS-148
|
|
|
10.2
|
7.1
|
10.2
|
19.0
|
2.2
|
18
|
12
|
10
|
44
|
ACUS-108
|
|
|
23-29
|
5.2
|
8.0
|
11.7
|
16.3
|
3.7
|
18
|
11
|
8
|
41
|
ACUS-110
|
|
6.5
|
8.0
|
11.7
|
16.3
|
3.7
|
18
|
11
|
8
|
41
|
ACUS-149
|
|
|
8.2
|
8.0
|
11.7
|
16.3
|
3.7
|
18
|
11
|
8
|
41
|
ACUS-150
|
|
|
10.2
|
8.0
|
11.7
|
20.0
|
2.8
|
18
|
14
|
11
|
47
|
ACUS-151
|
|
|
13.0
|
8.0
|
11.7
|
20.0
|
2.8
|
18
|
14
|
11
|
47
|
ACUS-111
|
|
|
29-45
|
5.2
|
9.8
|
13.7
|
19.3
|
3.9
|
18
|
10
|
10
|
43
|
ACUS-116
|
|
6.5
|
9.8
|
13.7
|
19.3
|
3.9
|
18
|
10
|
10
|
43
|
ACUS-152
|
|
|
8.2
|
9.8
|
13.7
|
19.3
|
3.9
|
18
|
10
|
10
|
43
|
ACUS-153
|
|
|
10.2
|
9.8
|
13.7
|
19.3
|
3.9
|
18
|
10
|
10
|
43
|
ACUS-154
|
|
|
13.0
|
9.8
|
13.7
|
22.0
|
3.2
|
18
|
14
|
11
|
48
|
ACUS-113
|
|
|
45-57
|
6.5
|
11.1
|
15.8
|
22.2
|
4.7
|
24
|
15
|
11
|
56
|
ACUS-112
|
|
8.2
|
11.1
|
15.8
|
22.2
|
4.7
|
24
|
15
|
11
|
56
|
ACUS-155
|
|
|
10.2
|
11.1
|
15.8
|
22.2
|
4.7
|
24
|
15
|
11
|
56
|
ACUS-156
|
|
|
13.0
|
11.1
|
15.8
|
22.2
|
4.7
|
24
|
15
|
11
|
56
|
ACUS-157
|
|
|
57-75
|
6.5
|
12.6
|
17.8
|
25.0
|
5.2
|
24
|
15
|
13
|
58
|
ACUS-114
|
|
8.2
|
12.6
|
17.8
|
25.0
|
5.2
|
24
|
15
|
13
|
58
|
ACUS-158
|
|
|
10.2
|
12.6
|
17.8
|
25.0
|
5.2
|
24
|
15
|
13
|
58
|
ACUS-159
|
|
|
13.0
|
12.6
|
17.8
|
25.0
|
5.2
|
24
|
15
|
13
|
58
|
ACUS-160
|
|
|
75-90
|
6.5
|
13.7
|
19.1
|
26.9
|
5.4
|
24
|
16
|
13
|
59
|
ACUS-137
|
|
8.2
|
13.7
|
19.1
|
26.9
|
5.4
|
24
|
16
|
13
|
59
|
ACUS-161
|
|
|
10.2
|
13.7
|
19.1
|
26.9
|
5.4
|
24
|
16
|
13
|
59
|
ACUS-162
|
|
|
13.0
|
13.7
|
19.1
|
26.9
|
5.4
|
24
|
16
|
13
|
59
|
ACUS-163
|
|
|
90-110
|
6.5
|
15.3
|
20.9
|
29.6
|
5.6
|
24
|
17
|
15
|
62
|
ACUS-115
|
|
8.2
|
15.3
|
20.9
|
29.6
|
5.6
|
24
|
17
|
15
|
62
|
ACUS-164
|
|
|
10.2
|
15.3
|
20.9
|
29.6
|
5.6
|
24
|
17
|
15
|
62
|
ACUS-165
|
|
|
13.0
|
15.3
|
20.9
|
29.6
|
5.6
|
24
|
17
|
15
|
62
|
ACUS-166
|
|
|
110-146
|
8.2
|
17.5
|
24
|
34
|
6.5
|
29
|
18
|
17
|
71
|
ACUS-138
|
|
10.2
|
17.5
|
24
|
34
|
6.5
|
29
|
18
|
17
|
71
|
ACUS-167
|
|
|
13.0
|
17.5
|
24
|
34
|
6.5
|
29
|
18
|
17
|
71
|
ACUS-168
|
|
|
17.0
|
17.5
|
24
|
34
|
6.5
|
29
|
18
|
17
|
71
|
ACUS-169
|
|
|
146-183
|
10.2
|
19.8
|
26.9
|
38.2
|
7.1
|
29
|
21
|
18
|
76
|
ACUS-128
|
|
13.0
|
19.8
|
26.9
|
38.2
|
7.1
|
29
|
21
|
18
|
76
|
ACUS-170
|
|
|
17.0
|
19.8
|
26.9
|
38.2
|
7.1
|
29
|
21
|
18
|
76
|
ACUS-171
|
|
|
183-225
|
10.2
|
21.9
|
29.7
|
42.2
|
7.8
|
29
|
24
|
21
|
83
|
ACUS-139
|
|
13.0
|
21.9
|
29.7
|
42.2
|
7.8
|
29
|
24
|
21
|
83
|
ACUS-172
|
|
|
17.0
|
21.9
|
29.7
|
42.2
|
7.8
|
29
|
24
|
21
|
83
|
ACUS-173
|
|
|
21.0
|
21.9
|
29.7
|
42.2
|
7.8
|
29
|
24
|
21
|
83
|
ACUS-174
|
|
|
225-299
|
13.0
|
25.4
|
34
|
48.5
|
8.6
|
29
|
26
|
24
|
89
|
ACUS-140
|
|
17.0
|
25.4
|
34
|
48.5
|
8.6
|
29
|
26
|
24
|
89
|
ACUS-175
|
|
|
21.0
|
25.4
|
34
|
48.5
|
8.6
|
29
|
26
|
24
|
89
|
ACUS-176
|
|
|
299-366
|
13.0
|
28.0
|
37.6
|
53.6
|
9.6
|
38
|
29
|
27
|
105
|
ACUS-141
|
|
17.0
|
28.0
|
37.6
|
53.6
|
9.6
|
38
|
29
|
27
|
105
|
ACUS-177
|
|
|
21.0
|
28.0
|
37.6
|
53.6
|
9.6
|
38
|
29
|
27
|
105
|
ACUS-178
|
|
|
366-437
|
13.0
|
30.5
|
41.7
|
59.1
|
11.2
|
38
|
32
|
29
|
111
|
ACUS-142
|
|
17.0
|
30.5
|
41.7
|
59.1
|
11.2
|
38
|
32
|
29
|
111
|
ACUS-179
|
|
|
21.0
|
30.5
|
41.7
|
59.1
|
11.2
|
38
|
32
|
29
|
111
|
ACUS-180
|
|
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
