Crimping Type Tin Plated Cu End Sealing Ferrules
Material: Copper Tube to BS 1977/IS 191 (Part-v)
Specification: As Per DIN 46228
Surface Finish: Electro Tin Plated
|

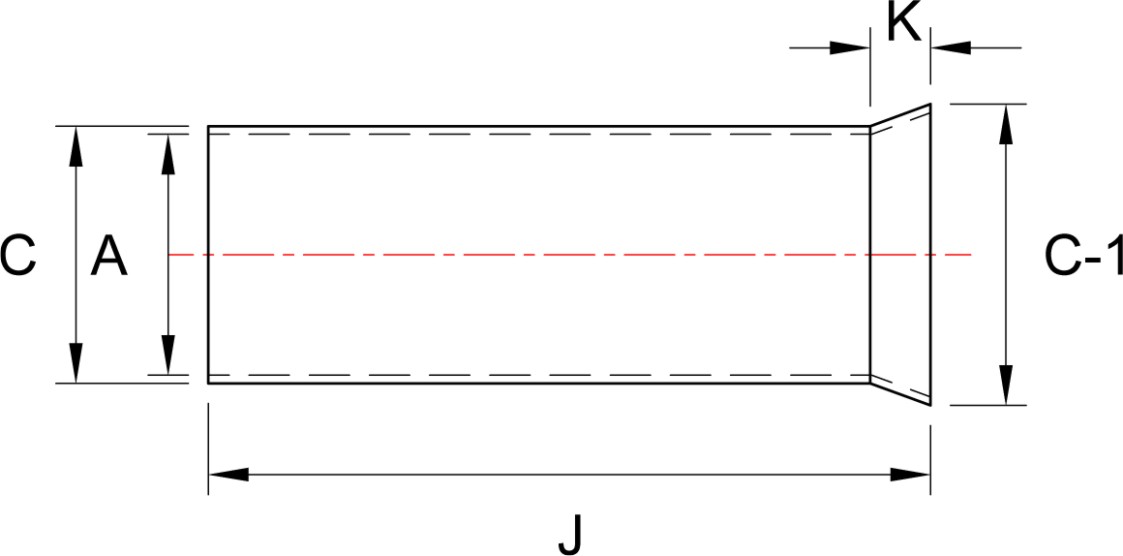

Size mm2 |
A |
C |
C-1 |
K |
J |
ASCON CAT. NO. |
|
0.5 |
1.0-1.1 |
1.4-1.5 |
2.1 |
0.7 |
6 |
ASH-508 |
|
0.75 |
1.4-1.5 |
1.8-1.9 |
2.5 |
0.7 |
6 |
ASH-509 |
|
1 |
1.6-1.7 |
2.0-2.1 |
2.7 |
0.7 |
6 |
ASH-510 |
|
1.6-1.7 |
2.0-2.1 |
2.7 |
0.7 |
10 |
ASH-511 |
|
|
1.5 |
1.8-1.9 |
2.2-2.3 |
2.9 |
1 |
7 |
ASH-512 |
|
1.8-1.9 |
2.2-2.3 |
2.9 |
1 |
10 |
ASH-513 |
|
|
2.5 |
2.3-2.4 |
2.7-2.8 |
3.5 |
1 |
7 |
ASH-514 |
|
2.3-2.4 |
2.7-2.8 |
3.5 |
1 |
12 |
ASH-515 |
|
|
4 |
2.8-2.9 |
3.2-3.3 |
4 |
1 |
9 |
ASH-516 |
|
2.8-2.9 |
3.2-3.3 |
4 |
1 |
12 |
ASH-517 |
|
|
6 |
3.7-3.8 |
4.1-4.2 |
4.8 |
1 |
10 |
ASH-518 |
|
3.7-3.8 |
4.1-4.2 |
4.8 |
1 |
12 |
ASH-519 |
|
|
3.7-3.8 |
4.1-4.2 |
4.8 |
1 |
15 |
ASH-520 |
|
|
10 |
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
12 |
ASH-521 |
|
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
15 |
ASH-522 |
|
|
4.6-4.7 |
5.0-5.1 |
5.8 |
1.2 |
18 |
ASH-523 |
|
|
16 |
5.9-6 |
6.3-6.4 |
7.5 |
1.5 |
12 |
ASH-524 |
|
5.9-6 |
6.3-6.4 |
7.5 |
1.5 |
15 |
ASH-525 |
|
|
5.9-6 |
6.3-6.4 |
7.5 |
1.5 |
18 |
ASH-526 |
|
|
25 |
6.7 |
7.2 |
9 |
|
12 |
ASH-527 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
