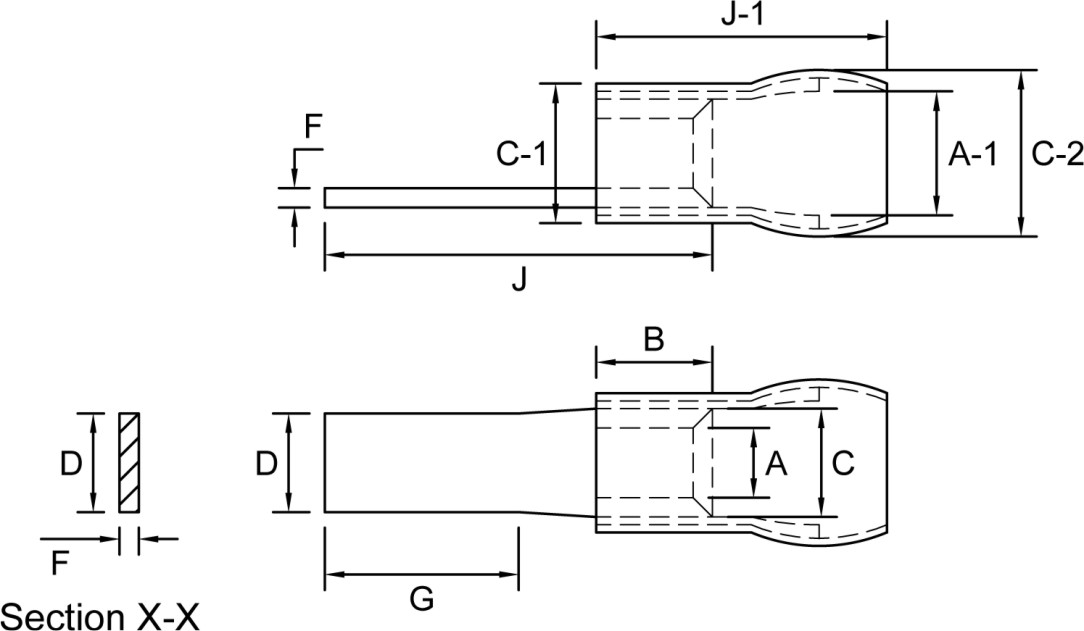

Flat Pin type (With Metal Insulation Sleeve)
With Metal Insulating Sleeve (Double Grip)
Material: Copper Strip to IS 1897:1983
Surface Finish: Electro Tin Plated
.png)
.png)
|
Dimensions in mm |
||||||||||||
|
Cable Size mm2 |
A |
C |
D |
F |
B |
G |
J |
J-1 |
A-1 |
C-1 |
C-2 |
ASCON CAT. NO. |
|
1.5
|
1.6
|
3.2
|
3.1
|
0.8
|
5
|
10
|
17
|
10
|
3.6
|
4.8
|
5.4
|
ACP-41
|
|
2.5 |
2.3 |
3.9 |
3.1 |
0.8 |
5 |
10 |
17 |
10 |
4.4 |
5.4 |
6.0 |
ACP-28 |
|
4.0 |
3.6 |
5.6 |
5.1 |
1.0 |
6 |
10 |
20 |
15 |
6.4 |
7.2 |
8.6 |
ACP-30 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
