Al. Lug Heavy Duty Long Barrel for XLPE HT Cable 33 KV
Suitable for XLPE HT Cable 33KV
Heavy Duty-Ref. IS 8309/1993 Table-II
for Crimping to Aluminium
Conductors Round Standard compacted
|

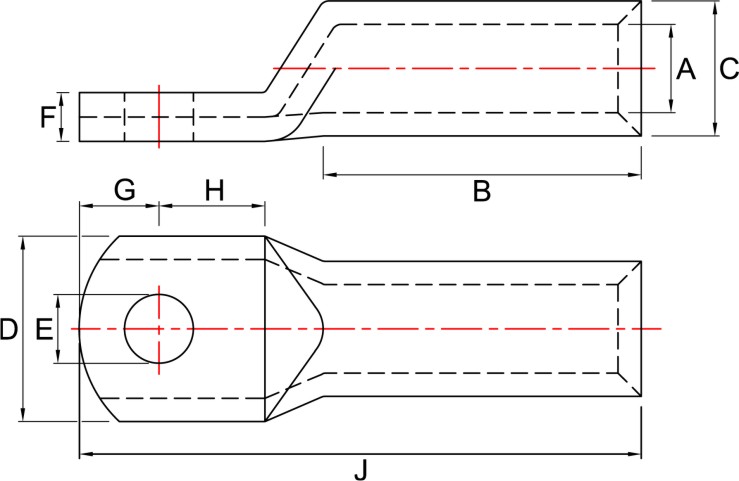

Dimensions in mm |
||||||||||
|
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
ΦE ±0.1 |
ΦA |
C |
D |
F |
B |
H |
G |
J |
||
|
(1) |
(2) |
(3) |
(4) |
(5) |
(6) |
(7) |
(8) |
(9) |
(10) |
(12) |
|
CAAX-16 |
8.4 |
5.6-5.9 |
10.0-10.5 |
16.0-16.5 |
3.1-3.8 |
32 |
10 |
8 |
57 |
AAX-16 |
|
CAAX-25 |
8.4 |
6.8-7.1 |
12.0-12.5 |
16.0-16.5 |
4.9-5.7 |
32 |
10 |
8 |
57 |
AAX-25 |
|
CAAX-35 |
10.5 |
8.0-8.3 |
14.0-14.5 |
20.0-20.5 |
5.7-6.5 |
42 |
12 |
10 |
72 |
AAX-35 |
|
CAAX-50 |
10.5 |
9.3-9.6 |
16.0-16.5 |
21.5-22.0 |
6.4-7.2 |
42 |
12 |
10 |
72 |
AAX-50 |
|
CAAX-70 |
13 |
11.2-11.6 |
18.5-19.0 |
25.0-25.5 |
6.9-7.8 |
52 |
15 |
13 |
90 |
AAX-70 |
|
CAAX-95 |
13 |
12.2-13.6 |
22.0-22.5 |
30.0-30.5 |
8.4-9.3 |
56 |
15 |
13 |
95 |
AAX-95 |
|
CAAX-120 |
13 |
14.7-15.1 |
23.0-23.5 |
31.5-32.0 |
7.9-8.8 |
56 |
20 |
15 |
102 |
AAX-120 |
|
CAAX-150 |
13 |
16.3-16.7 |
25.0-25.5 |
34.5-35.0 |
8.3-9.2 |
60 |
20 |
15 |
108 |
AAX-150 |
|
CAAX-185 |
17 |
18.3-18.7 |
28.5-29.0 |
39.5-40.0 |
9.8-10.7 |
60 |
20 |
15 |
110 |
AAX-185 |
|
CAAX-240 |
17 |
21.0-21.4 |
32.0-32.5 |
44.5-45.0 |
10.6-11.5 |
70 |
24 |
19 |
130 |
AAX-240 |
|
CAAX-300 |
17 |
23.3-23.7 |
34.0-34.5 |
47.5-48.0 |
10.3-11.2 |
70 |
24 |
19 |
130 |
AAX-300 |
|
CAAX-400 |
17 |
26.0-26.4 |
38.5-39.0 |
53.5-54.0 |
12.1-13.0 |
75 |
24 |
19 |
138 |
AAX-400 |
|
CAAX-500 |
17 |
29.0-29.4 |
44.0-44.5 |
60.5-61.0 |
14.6-15.5 |
80 |
24 |
22 |
148 |
AAX-500 |
|
CAAX-630 |
17 |
34.0-34.4 |
50.0-50.5 |
69.5-70.0 |
15.6-16.5 |
90 |
28 |
26 |
170 |
AAX-630 |
Note: Tolerane on B, H, G & J Are ± 5%
Recommended to use suitable crimping tools to perfect Joint.
