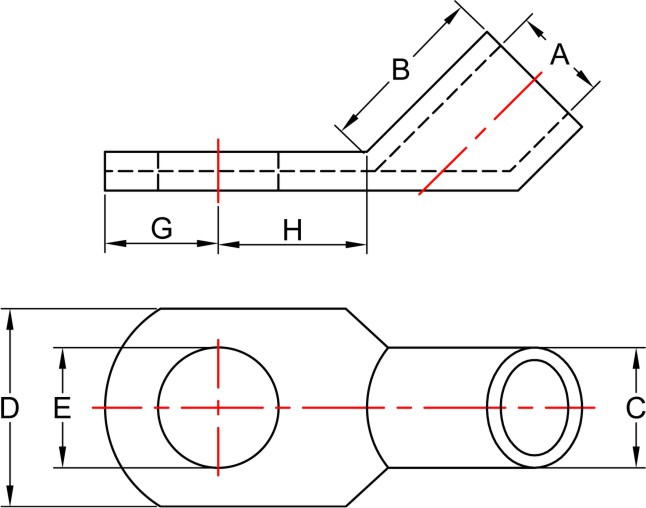

Dimensions in mm
Cable Size mm²	Stud mm	Stud Hole Size	Barrel ID	Barrel OD	Palm Width	Barrel Length	Stud hole distance from Top	Stud hole Distance From Barrel End	ASCON CAT. NO.
Cable Size mm²	Stud mm	E	A	C	D	B	G	H	ASCON CAT. NO.
6	M4	4.2	3.8	5.5	9.5	9	4	7	AAF 6-4

	M6	6.2	3.8	5.5	10	9	5	9	AAF 6-6



10	M5	5.2	4.5	6.2	12	10	6	10	AAF 10-5
	M6	6.5	4.5	6.2	12	10	6	10	AAF 10-6



16
	M6	6.5	5.4	7.1	12	13	7	10	AAF 16-6
	M8	8.4	5.4	7.1	12	13	7	10	AAF 16-8




25
	M6	6.5	6.8	8.8	12	14	7	10	AAF 25-6
	M8	8.4	6.8	8.8	12	14	7	12	AAF 25-8




35	M6	6.5	8.2	10.6	15	16	9	12	AAF 35-6
	M8	8.4	8.2	10.6	15	16	9	12	AAF 35-8




50

	M10	10.5	9.5	12.4	18	18	10	13	AAF 50-10
	M12	13	9.5	12.4	23	18	12	18	AAF 50-12



70

	M10	10.5	11.2	14.7	21	20	10	13	AAF 70-10
	M12	13	11.2	14.7	21	20	12	17	AAF 70-12



95
	M10	10.5	13.5	17.4	25	24	12	17	AAF 95-10
	M12	13	13.5	17.4	25	24	12	17	AAF 95-12



120
	M10	10.5	15	19.4	28	24	14	19	AAF 120-10
	M12	13	15	19.4	28	25	14	19	AAF 120-12



150

	M12	13	16.5	21.2	30	29	14	19	AAF 150-12

	M16	17	16.5	21.2	30	29	16	21	AAF 150-16

185
	M12	13	18.5	23.5	34	30	17	22	AAF 185-12

	M16	17	18.5	23.5	34	30	17	22	AAF 185-16

240


	M16	17	21	26.5	38	35	20	25	AAF 240-16
	M20	21	21	26.5	38	35	20	27	AAF 240-20
300


	M16	17	23.5	30	43	42	22	27	AAF 300-16
	M20	21	23.5	30	43	42	22	27	AAF 300-20
400

	M16	17	26.8	34.8	50	44	24	29	AAF 400-16
	M20	21	26.8	34.8	50	44	24	29	AAF 400-20

*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.

Cu. Lug 45Ëš Angle Bend Type
