Cu. Lug Four Holes for Transformer
|

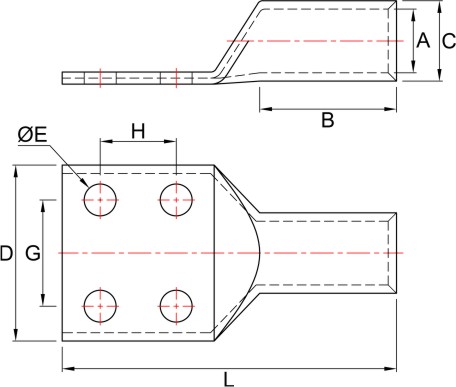

Dimensions in mm |
|||||||||
|
Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Stud Center Distance from Top |
Stud Center Distance from Barrel |
Barrel Length |
Total Length |
ASCON CAT.NO |
|
E |
A |
C |
D |
G |
H |
B |
L |
||
|
240 |
8.5 10.5 |
21 |
26.5 |
58 |
35 |
25 |
45 |
110 |
ACUS-240-4E8 ACUS-240-4E10 |
|
300 |
8.5 10.5 |
23.5 |
30 |
58 |
35 |
25 |
50 |
115 |
ACUS-300-4E8 ACUS-300-4E10 |
|
400 |
8.5 10.5 |
26.8 |
34.8 |
58 |
35 |
25 |
52 |
120 |
ACUS-400-4E8 ACUS-400-4E10 |
|
500 |
8.5 10.5 |
30 |
39 |
58 |
35 |
25 |
56 |
124 |
ACUS-500-4E8 ACUS-500-4E10 |
|
630 |
8.5 10.5 |
35 |
45 |
65 |
35 |
25 |
66 |
145 |
ACUS-630-4E8 ACUS-630-4E10 |
|
800 |
8.5 10.5 |
39 |
50.6 |
73 |
35 |
25 |
90 |
170 |
ACUS-800-4E8 ACUS-800-4E10 |
|
1000 |
8.5 10.5 |
43 |
56.2 |
81 |
35 |
25 |
100 |
200 |
ACUS-1000-4E8 ACUS-1000-4E10 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
