Cu. Lug Bell Mouth Type
Bell Mouth Type as Per Australian Standard
Material : E-Copper Tube to BS: 1977
|

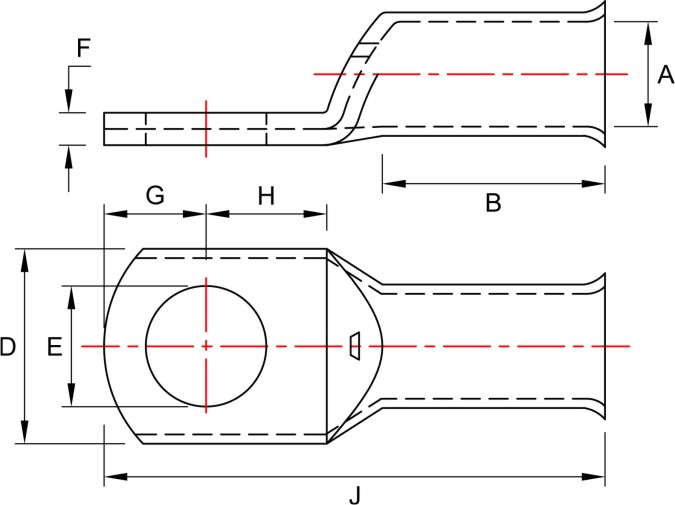

Dimensions in mm |
|||||||||
|
Size mm2 |
Stud Hole Size |
Barrel ID |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Top |
Stud Center Distance from Barrel |
Total Length |
ASCON CAT.NO |
|
E |
A |
D |
F |
B |
G |
H |
J |
||
|
1.5 |
4.2 |
2 |
8.0 |
1.0 |
7.5 |
4 |
5 |
18.5 |
ACUS-B1.5-4 |
|
5.2 |
2 |
8.0 |
1.0 |
7.5 |
4 |
5 |
18.5 |
ACUS-B1.5-5 |
|
|
6.5 |
2 |
10.0 |
0.8 |
7.5 |
4 |
6 |
19.5 |
ACUS-B1.5-6 |
|
|
2.5 |
4.2 |
2.5 |
8.0 |
1.0 |
8.0 |
4 |
5 |
19.0 |
ACUS-B2.5-4 |
|
5.2 |
2.5 |
10.0 |
0.8 |
8.0 |
5 |
6 |
20.0 |
ACUS-B2.5-5 |
|
|
6.5 |
2.5 |
10.0 |
0.8 |
8.0 |
5 |
6 |
20.0 |
ACUS-B2.5-6 |
|
|
8.4 |
2.5 |
11.0 |
0.7 |
8.0 |
6 |
9 |
26.0 |
ACUS-B2.5-8 |
|
|
4 |
5.2 |
3.3 |
10.0 |
1.0 |
9.0 |
5 |
6 |
22.0 |
ACUS-B4-5 |
|
6.5 |
3.3 |
10.0 |
1.0 |
9.0 |
5 |
6 |
22.0 |
ACUS-B4-6 |
|
|
8.4 |
3.3 |
12.0 |
0.8 |
9.0 |
6 |
9 |
26.0 |
ACUS-B4-8 |
|
|
10.2 |
3.3 |
15.0 |
0.8 |
9.0 |
8 |
11 |
32.0 |
ACUS-B4-10 |
|
|
6 |
5.2 |
3.8 |
10.0 |
1.2 |
10.0 |
5 |
6 |
23.0 |
ACUS-B6-5 |
|
6.5 |
3.8 |
12.0 |
1.0 |
10.0 |
6 |
9 |
27.0 |
ACUS-B6-6 |
|
|
8.4 |
3.8 |
12.0 |
1.0 |
10.0 |
6 |
9 |
27.0 |
ACUS-B6-8 |
|
|
10.2 |
3.8 |
15.0 |
0.8 |
10.0 |
8 |
11 |
32.0 |
ACUS-B6-10 |
|
|
10 |
5.2 |
4.7 |
12.0 |
1.8 |
10.0 |
6 |
7 |
27.0 |
ACUS-B10-5 |
|
6.5 |
4.7 |
12.0 |
1.8 |
10.0 |
6 |
7 |
27.0 |
ACUS-B10-6 |
|
|
8.4 |
4.7 |
14.0 |
1.6 |
10.0 |
7 |
8 |
29.0 |
ACUS-B10-8 |
|
|
10.5 |
4.7 |
15.0 |
1.5 |
10.0 |
8 |
10 |
32.0 |
ACUS-B10-10 |
|
|
13.0 |
4.7 |
18.0 |
1.0 |
10.0 |
10 |
12 |
38.0 |
ACUS-B10-12 |
|
|
16 |
6.5 |
5.5 |
11.0 |
2.4 |
19.0 |
7 |
9 |
39.0 |
ACUS-B16-6 |
|
8.4 |
5.5 |
14.0 |
1.7 |
19.0 |
7 |
9 |
39.0 |
ACUS-B16-8 |
|
|
10.5 |
5.5 |
16.0 |
1.5 |
19.0 |
8 |
10 |
41.0 |
ACUS-B16-10 |
|
|
13.0 |
5.5 |
18.0 |
1.2 |
19.0 |
10 |
13 |
46.0 |
ACUS-B16-12 |
|
|
25 |
6.5 |
7.1 |
13.5 |
2.4 |
21.0 |
7 |
9 |
41.0 |
ACUS-B25-6 |
|
8.4 |
7.1 |
13.5 |
2.4 |
21.0 |
7 |
9 |
41.0 |
ACUS-B25-8 |
|
|
10.5 |
7.1 |
16.0 |
1.9 |
21.0 |
9 |
10 |
44.0 |
ACUS-B25-10 |
|
|
13.0 |
7.1 |
18.0 |
1.6 |
21.0 |
10 |
13 |
48.0 |
ACUS-B25-12 |
|
|
35 |
6.5 |
8.4 |
16.0 |
3.0 |
21.0 |
9 |
10 |
45.0 |
ACUS-B35-6 |
|
8.4 |
8.4 |
16.0 |
3.0 |
21.0 |
9 |
10 |
45.0 |
ACUS-B35-8 |
|
|
10.5 |
8.4 |
18.0 |
2.6 |
21.0 |
9 |
10 |
45.0 |
ACUS-B35-10 |
|
|
13.0 |
8.4 |
20.0 |
2.2 |
21.0 |
11 |
13 |
51.0 |
ACUS-B35-12 |
|
|
50 |
6.5 |
9.5 |
18.0 |
3.3 |
22.0 |
8 |
10 |
46.0 |
ACUS-B50-6 |
|
8.4 |
9.5 |
18.0 |
3.3 |
22.0 |
8 |
10 |
46.0 |
ACUS-B50-8 |
|
|
10.5 |
9.5 |
18.0 |
3.3 |
22.0 |
8 |
10 |
52.0 |
ACUS-B50-10 |
|
|
13.0 |
9.5 |
21.0 |
2.7 |
22.0 |
11 |
13 |
54.0 |
ACUS-B50-12 |
|
|
70 |
6.5 |
11.3 |
21.0 |
3.5 |
24.0 |
11 |
13 |
54.0 |
ACUS-B70-6 |
|
8.4 |
11.3 |
21.0 |
3.5 |
24.0 |
11 |
13 |
54.0 |
ACUS-B70-8 |
|
|
10.5 |
11.3 |
21.0 |
3.5 |
24.0 |
11 |
13 |
54.0 |
ACUS-B70-10 |
|
|
13.0 |
11.3 |
21.0 |
3.5 |
24.0 |
11 |
13 |
54.0 |
ACUS-B70-12 |
|
|
17.0 |
11.3 |
26.0 |
3.0 |
24.0 |
14 |
16 |
61.0 |
ACUS-B70-16 |
|
|
95 |
8.4 |
13.5 |
25 |
4.0 |
27 |
12 |
14 |
60 |
ASAHT 95-8 |
|
10.5 |
13.5 |
25 |
4.0 |
27 |
12 |
14 |
60 |
ASAHT 95-10 |
|
|
13.0 |
13.5 |
25 |
4.0 |
27 |
12 |
14 |
60 |
ASAHT 95-12 |
|
|
17.0 |
13.5 |
25 |
4.0 |
27 |
14 |
16 |
61 |
ASAHT 95-16 |
|
|
120 |
8.4 |
15.6 |
30 |
5.0 |
30 |
12 |
14 |
64 |
ASAHT 120-8 |
|
10.5 |
15.6 |
30 |
5.0 |
30 |
12 |
14 |
64 |
ASAHT 120-10 |
|
|
13.0 |
15.6 |
30 |
5.0 |
30 |
12 |
14 |
64 |
ASAHT 120-12 |
|
|
17.0 |
15.6 |
30 |
5.0 |
30 |
16 |
16 |
72 |
ASAHT 120-16 |
|
|
150 |
10.5 |
16.7 |
32 |
5.8 |
30 |
16 |
16 |
71 |
ASAHT 150-10 |
|
13.0 |
16.7 |
32 |
5.8 |
30 |
18 |
18 |
75 |
ASAHT 150-12 |
|
|
17.0 |
16.7 |
32 |
5.8 |
30 |
18 |
18 |
75 |
ASAHT 150-16 |
|
|
185 |
10.5 |
18.4 |
36 |
6.4 |
32 |
16 |
16 |
74 |
ASAHT 185-10 |
|
13.0 |
18.4 |
36 |
6.4 |
32 |
18 |
18 |
79 |
ASAHT 185-12 |
|
|
17.0 |
18.4 |
36 |
6.4 |
32 |
18 |
18 |
79 |
ASAHT 185-16 |
|
|
240 |
BLK |
21.2 |
41 |
7.0 |
38 |
21 |
21 |
92 |
ASAHT 240-BLK |
|
10.5 |
21.2 |
41 |
7.0 |
38 |
21 |
21 |
92 |
ASAHT 240-10 |
|
|
13.0 |
21.2 |
41 |
7.0 |
38 |
21 |
21 |
92 |
ASAHT 240-12 |
|
|
17.0 |
21.2 |
41 |
7.0 |
38 |
21 |
21 |
92 |
ASAHT 240-16 |
|
|
300 |
BLK |
23.8 |
46 |
7.8 |
42 |
23 |
23 |
101 |
ASAHT 300-BLK |
|
13.0 |
23.8 |
46 |
7.8 |
42 |
23 |
23 |
101 |
ASAHT 300-12 |
|
|
17.0 |
23.8 |
46 |
7.8 |
42 |
23 |
23 |
101 |
ASAHT 300-16 |
|
|
400 |
BLK |
26.8 |
50 |
8.0 |
44 |
24 |
24 |
107 |
ASAHT 400-BLK |
|
500 |
BLK |
30.0 |
56 |
9.0 |
50 |
27 |
27 |
119 |
ASAHT 500-BLK |
|
630 |
BLK |
34.0 |
64.4 |
11.0 |
58 |
32 |
32 |
139 |
ASAHT 630-BLK |
Recommended to use suitable crimping tools to perfect Joint.
