Cu. Lug Double Holes Medium duty Type
Double Holes
Type: Medium Duty

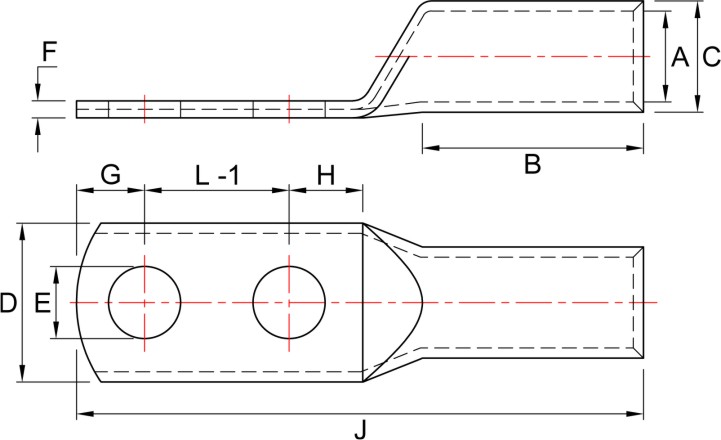

Dimensions in mm |
|||||||||||
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Barrel Length |
Stud Center Distance from Top |
Stud Center Distance from Barrel |
Hole to Hole Center Distance |
Palm Length |
Total Length |
ASCON CAT.NO |
|
E |
A |
C |
D |
B |
G |
H |
L-1 |
F |
J |
||
|
10 |
6.4 |
4.5 |
6.2 |
9 |
13 |
6 |
6 |
16.0 |
1.3 |
44 |
ACUS-LDH-01 |
|
16 |
6.4 |
5.4 |
7.1 |
10 |
16 |
6 |
6 |
16.0 |
1.6 |
48 |
ACUS-LDH-02 |
|
25 |
6.4 |
7.0 |
9.0 |
13 |
18 |
8 |
9 |
16.0 |
2.0 |
55 |
ACUS-LDH-03 |
|
35 |
8.2 |
8.0 |
10.0 |
15 |
18 |
8 |
9 |
16.0 |
2.0 |
56 |
ACUS-LDH-04 |
|
50 |
10.2 |
9.2 |
11.2 |
16 |
24 |
10 |
11 |
16.0 |
2.0 |
67 |
ACUS-LDH-05 |
|
70 |
12.7 |
11.6 |
13.8 |
20 |
27 |
12 |
13 |
25.5 |
2.3 |
84 |
ACUS-LDH-06 |
|
95 |
12.7 |
13.8 |
15.6 |
23 |
30 |
12 |
13 |
25.5 |
2.8 |
89 |
ACUS-LDH-07 |
|
120 |
12.7 |
14.8 |
17.8 |
26 |
33 |
12 |
13 |
25.5 |
3.0 |
93 |
ACUS-LDH-08 |
|
150 |
12.7 |
16.0 |
19.6 |
28 |
39 |
12 |
13 |
25.5 |
3.6 |
100 |
ACUS-LDH-09 |
|
185 |
12.7 |
18.0 |
22.0 |
32 |
45 |
12 |
13 |
25.5 |
4.0 |
107 |
ACUS-LDH-10 |
|
240 |
16.2 |
22.0 |
26.0 |
38 |
54 |
16 |
18 |
30.0 |
4.0 |
132 |
ACUS-LDH-11 |
|
300 |
16.2 |
24.0 |
28.7 |
42 |
58 |
16 |
18 |
30.0 |
4.7 |
137 |
ACUS-LDH-12 |
|
400 |
16.2 |
28.0 |
33.2 |
49 |
66 |
20 |
22 |
30.0 |
5.2 |
156 |
ACUS-LDH-13 |
|
500 |
16.2 |
30.0 |
36.0 |
53 |
72 |
20 |
22 |
40.0 |
6.0 |
174 |
ACUS-LDH-14 |
|
630 |
16.2 |
35.0 |
41.5 |
61 |
83 |
20 |
22 |
40.0 |
6.5 |
187 |
ACUS-LDH-15 |
Recommended to use suitable crimping tools to perfect Joint.
