Cu. Lug RCF as per EDTS-200 Spec.
Railway series For E-Beam Cable
RCF Spec. EDTS-200 Rev.
‘NIL’ AM-1, Corr.-2

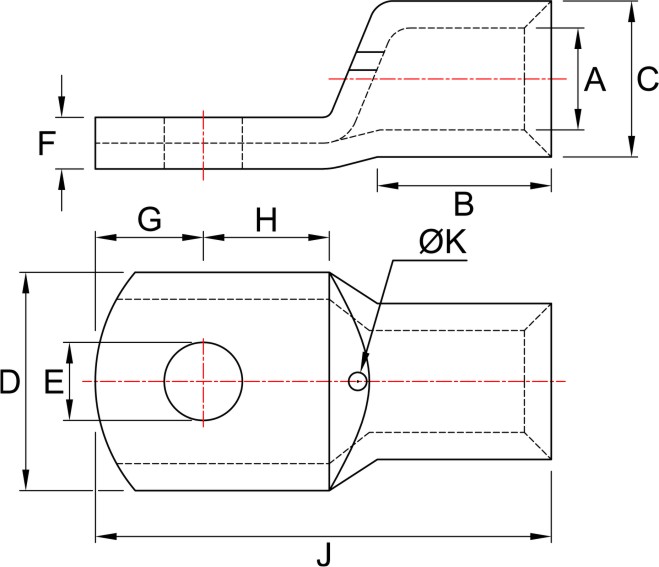

Dimensions in mm |
||||||||||||
Cable Size mm2 |
RCF’s Item No. |
STUD Size |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
Inspection Hole (Ø K) |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
||||
|
16 |
17 |
M6 |
6.5 |
5.8 |
8.5 |
11.9 |
2.7 |
14 |
10 |
6 |
33 |
Ø3 |
|
16 |
M8 |
8.2 |
5.8 |
8.5 |
16.0 |
1.9 |
14 |
11 |
9 |
37 |
Ø3 |
|
|
15 |
M10 |
10.2 |
5.8 |
8.5 |
16.0 |
1.9 |
14 |
11 |
9 |
37 |
Ø3 |
|
|
25
|
14 |
M8 |
8.2 |
7.2 |
11.5 |
16.0 |
4.3 |
18 |
11 |
8 |
41 |
Ø3 |
|
13 |
M10 |
10.2 |
7.2 |
11.5 |
19.6 |
3.4 |
18 |
14 |
11 |
47 |
Ø3 |
|
|
- |
M16 |
17.0 |
7.2 |
11.5 |
22.0 |
2.5 |
19 |
16 |
14 |
56 |
Ø3 |
|
|
35 |
12 |
M10 |
10.2 |
8.2 |
13.0 |
17.9 |
4.8 |
18 |
10 |
10 |
43 |
Ø3 |
|
50
|
11 |
M8 |
8.2 |
10.0 |
15.5 |
21.6 |
5.5 |
24 |
15 |
11 |
56 |
Ø3 |
|
10 |
M10 |
10.2 |
10.0 |
15.5 |
21.6 |
5.5 |
24 |
15 |
11 |
56 |
Ø3 |
|
|
9 |
M12 |
13.0 |
10.0 |
15.5 |
21.6 |
5.5 |
24 |
15 |
11 |
56 |
Ø3 |
|
|
22 |
M16 |
17.0 |
10.0 |
15.5 |
25.0 |
4.0 |
24 |
15 |
15 |
62 |
Ø3 |
|
|
70
|
8 |
M10 |
10.2 |
12.0 |
17.8 |
25.0 |
5.8 |
24 |
15 |
13 |
58 |
Ø3 |
|
7 |
M12 |
13.0 |
12.0 |
17.8 |
25.0 |
5.8 |
24 |
15 |
13 |
58 |
Ø3 |
|
|
18 |
M16 |
17.0 |
12.0 |
17.8 |
26.0 |
5.0 |
24 |
15 |
15 |
62 |
Ø3 |
|
|
95
|
6 |
M8 |
8.2 |
13.5 |
20.0 |
27.8 |
6.5 |
24 |
17 |
15 |
62 |
Ø4 |
|
5 |
M10 |
10.2 |
13.5 |
20.0 |
27.8 |
6.5 |
24 |
17 |
15 |
62 |
Ø4 |
|
|
4 |
M12 |
13.0 |
13.5 |
20.0 |
27.8 |
6.5 |
24 |
17 |
15 |
62 |
Ø4 |
|
|
19 |
M16 |
17.0 |
13.5 |
20.0 |
28.0 |
6.5 |
24 |
17 |
15 |
64 |
Ø4 |
|
|
120 |
3 |
M12 |
13.0 |
15.4 |
23.0 |
32.0 |
7.6 |
29 |
18 |
17 |
71 |
Ø4 |
|
20 |
M16 |
17.0 |
15.4 |
23.0 |
32.0 |
7.6 |
29 |
18 |
17 |
71 |
Ø4 |
|
|
150 |
2 |
M12 |
13.0 |
17.4 |
26.0 |
36.4 |
8.6 |
29 |
21 |
18 |
76 |
Ø4 |
|
1 |
M16 |
17.0 |
17.4 |
26.0 |
36.4 |
8.6 |
29 |
21 |
18 |
76 |
Ø4 |
|
|
185 |
21 |
M16 |
17.0 |
19.0 |
28.0 |
38.5 |
9.0 |
32 |
21 |
19 |
82 |
Ø4 |
Recommended to use suitable crimping tools to perfect Joint.
