Cu. Lug CLW Railway Series

SEND ENQUIRY

For Crimping to Copper Conductors
Ref: C.L.W., Railway Series

Dimensions in mm
Area mm²	Cable Size	Stud Hole Size	Barrel ID	Barrel OD	Palm Width	Palm Thickness	Barrel Length	Stud Center Distance from Barrel	Stud Center Distance from Top	Total Length	Distance between holes	Type	ASCON CAT. NO.

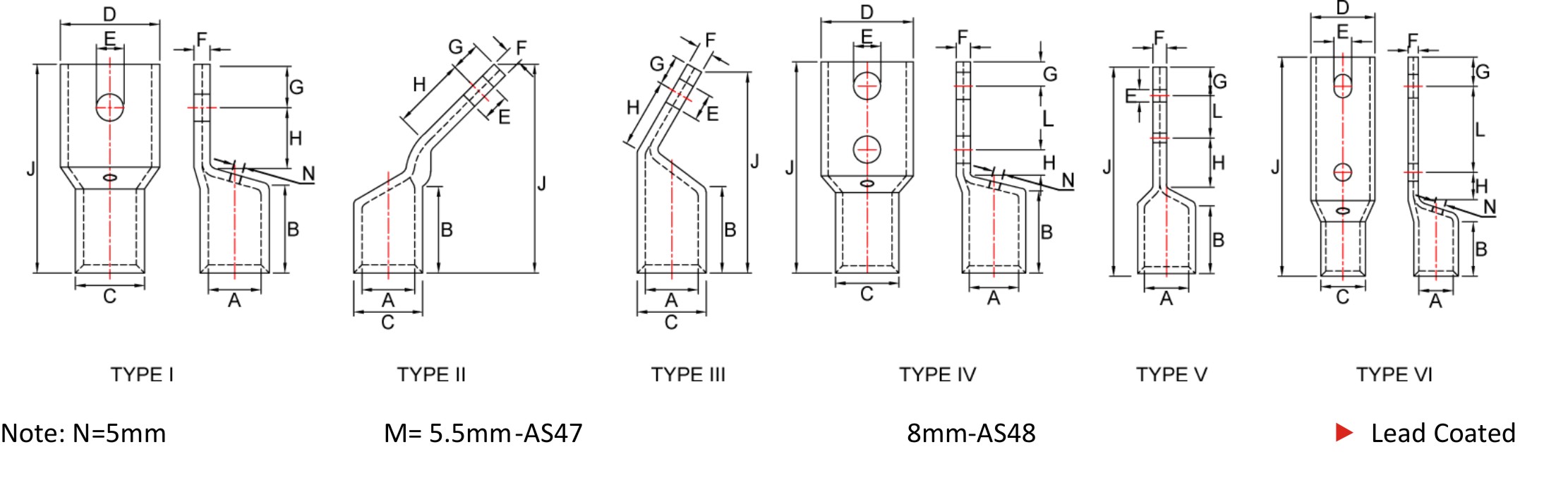

Area mm²	Cable Size	E	A	C	D	F	B	H	G	J	L	Type	ASCON CAT. NO.
133	650/0.5	10.3	17	22.2	32	5.2	27	28	19	82	-	I	AS-36
	650/0.5	13.5	17	22.2	32	5.2	27	28	19	82	-	I	AS-37
	650/0.5	13.5	17	22.2	32	5.2	27	19	14	67	-	I	AS-38
	650/0.5	10.3	17	22.2	32	5.2	27	19	14	67	-	I	AS-39
	650/0.5	10.3	17	22.2	32	5.2	27	19	14	62	-	II	AS-40
	650/0.5	10.3	17	22.2	32	5.2	27	19	14	67	-	III	AS-41
	650/0.5	8.7	17	22.2	32	5.2	27	11	11	79	22.2	V	AS-47
	650/0.5	8.7	17	22.2	32	5.2	27	14	13	109	44.4	VI	â–º AS-51
270	1325/0.5	16.6	24.6	31.7	46	7.1	40	22	21	94	-	I	AS-42
	1325/0.5	13.5	24.6	31.7	46	7.1	40	22	21	94	-	I	AS-43
	1325/0.5	13.5	24.6	31.7	46	7.1	35	22	21	86	-	III	AS-44
	1325/0.5	10.3	24.6	31.7	46	7.1	40	13	12	97	25.4	V	AS-48
	1325/0.5	13.5	24.6	31.7	46	7.1	40	13	12	105	31.7	IV	AS-49
400	1925/0.5	17.4	29.3	37.2	53	7.9	47	29	22	108	-	I	AS-45
	1925/0.5	13.5	29.3	37.2	53	7.9	47	29	22	108	-	I	AS-46
	1925/0.5	14.3	29.3	37.2	53	7.9	51	27	13	130	31.7	IV	AS-50

*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
