Cu. Lug CLW Railway Series
For Crimping to Copper Conductors

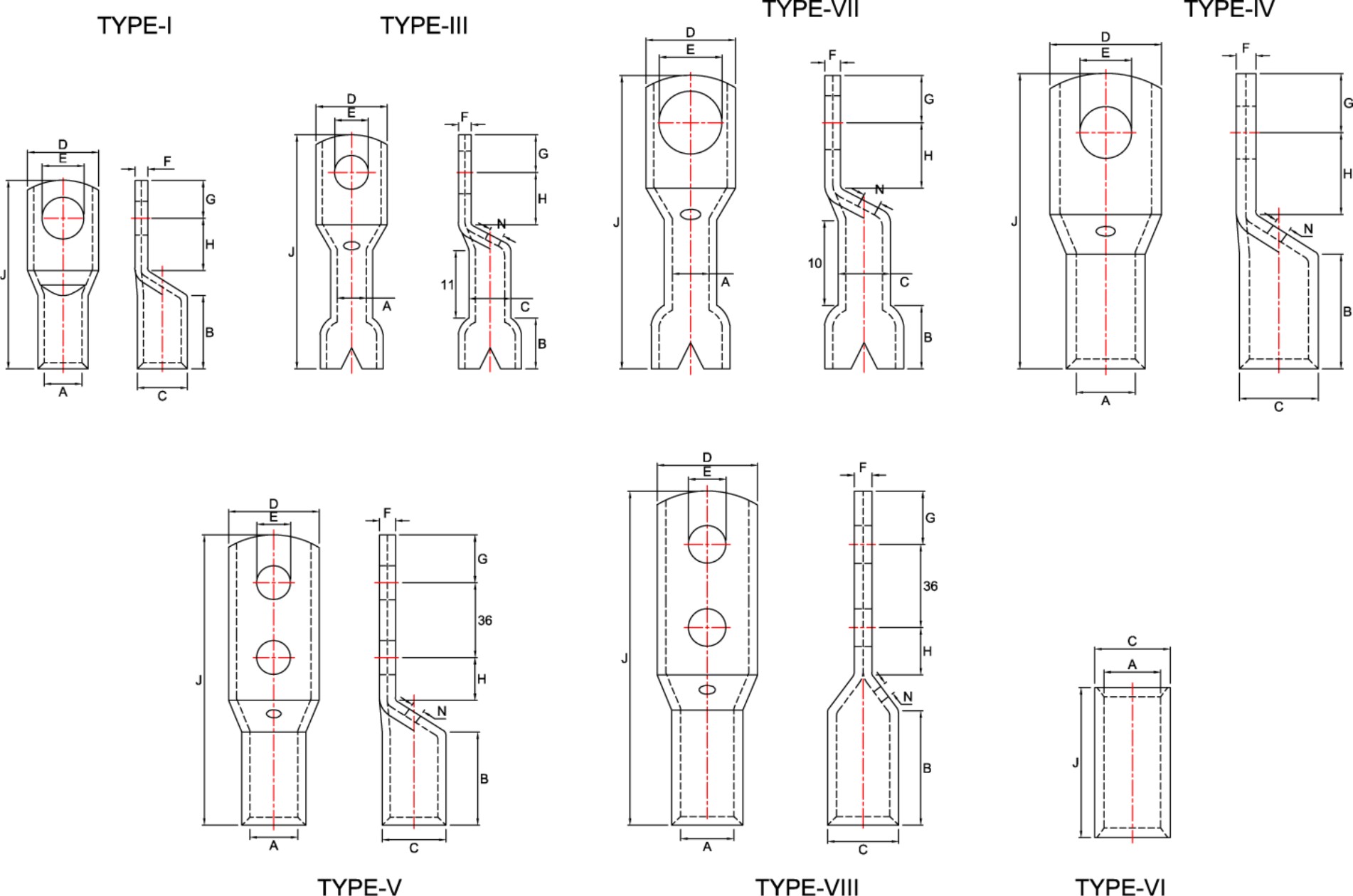

Ref: C.L.W., Railway Series
|
Dimensions in mm |
|||||||||||||
|
Area mm2 |
Cable Size |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total |
Inspection |
Type |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
N |
||||
|
3
|
45/0.3 |
3.2 |
2.6 |
4.6 |
7.0 |
1.6 |
5.5 |
6.5 |
3.5 |
15.5 |
- |
I |
ACUS-66 |
|
45/0.3 |
3.2 |
2.6 |
4.6 |
5.0 |
2.0 |
5.5 |
6.5 |
2.5 |
14.5 |
- |
I |
ACUS-67 |
|
|
45/0.3 |
4.2 |
2.6 |
4.6 |
7.3 |
1.5 |
5.5 |
6.5 |
4 |
16 |
- |
I |
ACUS-65 |
|
|
45/0.3 |
4.2 |
2.6 |
4.6 |
8.0 |
1.4 |
5.5 |
6.5 |
4 |
16 |
- |
I |
ACUS-209 |
|
|
45/0.3 |
5.2 |
2.6 |
4.6 |
8.0 |
1.4 |
5.5 |
6.5 |
4 |
16 |
- |
I |
ACUS-210 |
|
|
45/0.3 |
6.2 |
2.6 |
5.0 |
10.0 |
1.4 |
8 |
10 |
5 |
34 |
1.5 |
III |
ACUS-211 |
|
|
10 |
144/0.3 |
6.2 |
5.0 |
7.0 |
10.0 |
2.0 |
10 |
11 |
7 |
40 |
3 |
VII |
ACUS-228 |
|
144/0.3 |
8.2 |
5.0 |
7.0 |
12.0 |
1.6 |
10 |
11 |
7 |
40 |
3 |
VII |
ACUS-68 |
|
|
144/0.3 |
10.2 |
5.0 |
7.0 |
14.0 |
1.4 |
10 |
11 |
7 |
40 |
3 |
VII |
ACUS-69 |
|
|
25 |
127/0.5 |
6.2 |
8.0 |
10.0 |
15.0 |
2.0 |
16 |
14 |
10 |
45 |
3 |
IV |
ACUS-212 |
|
127/0.5 |
8.2 |
8.0 |
10.0 |
15.0 |
2.0 |
16 |
14 |
10 |
45 |
3 |
IV |
ACUS-56 |
|
|
35 |
- |
8.2 |
9.6 |
12.0 |
17.0 |
2.4 |
20 |
21 |
14 |
60 |
3 |
IV |
ACUS-187 |
|
50 |
175/0.5 |
10.5 |
10.8 |
14.0 |
20.0 |
3.2 |
20 |
20 |
14 |
60 |
3 |
IV |
ACUS-87 |
|
175/0.5 |
15.0 |
10.8 |
14.0 |
20.0 |
3.2 |
20 |
20 |
14 |
60 |
3 |
IV |
ACUS-230 |
|
|
70 |
- |
11.0 |
12.8 |
17.0 |
24.0 |
4.2 |
25 |
18 |
12 |
65 |
4 |
IV |
ACUS-229 |
|
120 |
427/0.6 |
14.0 |
17.0 |
22.2 |
32.2 |
5.2 |
30 |
27 |
18 |
88 |
4 |
IV |
ACUS-55 |
|
427/0.6 |
21.0 |
17.0 |
22.2 |
32.2 |
5.2 |
30 |
27 |
18 |
88 |
4 |
IV |
ACUS-70 |
|
|
150 |
525/0.6 |
16.0 |
18.0 |
24.0 |
34.0 |
6.0 |
35 |
25 |
18 |
90 |
5 |
IV |
ACUS-54 |
|
225 |
760/0.6 |
16.0 |
22.0 |
28.0 |
40.0 |
6.0 |
45 |
25 |
18 |
100 |
5 |
IV |
ACUS-213 |
|
760/0.6 |
11.0 |
22.0 |
28.0 |
40.0 |
6.0 |
45 |
22 |
15 |
130 |
5 |
V |
ACUS-214 |
|
|
760/0.6 |
11.0 |
22.0 |
28.0 |
40.0 |
6.0 |
45 |
25 |
18 |
100 |
5 |
IV |
ACUS-71 |
|
|
270 |
950/0.6 |
11.0 |
26.0 |
32.0 |
40.0 |
6.0 |
55 |
24 |
15 |
142 |
5 |
VIII |
ACUS-215 |
|
950/0.6 |
- |
26.0 |
30.0 |
- |
- |
- |
- |
- |
70 |
- |
VI |
ACUS-72 |
|
|
475
|
1680/0.6 |
11.0 |
36.5 |
46.1 |
50.0 |
9.6 |
75 |
24 |
15 |
165 |
5 |
VIII |
ACUS-74 |
|
1680/0.6 |
22.0 |
36.5 |
46.1 |
50.0 |
9.6 |
75 |
33 |
22 |
145 |
5 |
IV |
ACUS-73 |
|
|
1680/0.6 |
11.0 |
36.5 |
46.1 |
50.0 |
9.6 |
75 |
33 |
22 |
145 |
5 |
IV |
ACUS-75 |
|
Recommended to use suitable crimping tools to perfect Joint.
