Cu. Lug Economy Series
Crimping Type Economy Series
For Aluminium Conductors
|

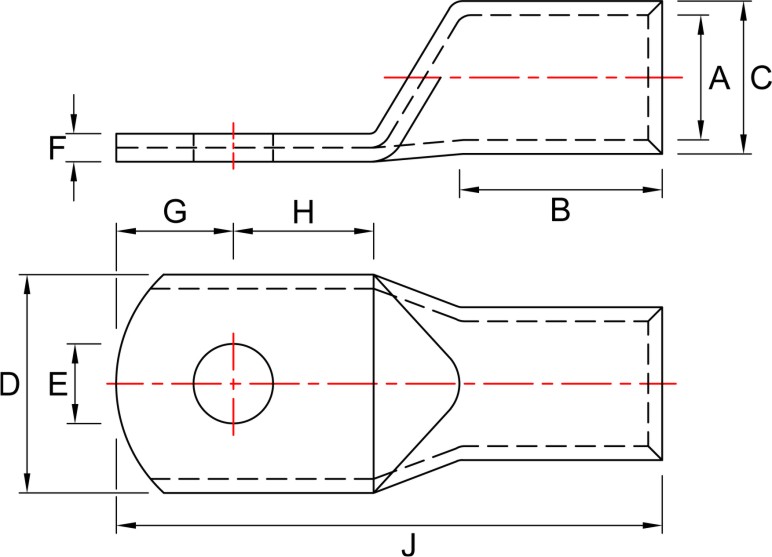

Dimensions in mm |
||||||||||
|
Cable Size mm2 |
Stud Hole Size |
Barrel ID |
Barrel OD |
Palm Width |
Palm Thickness |
Barrel Length |
Stud Center Distance from Barrel |
Stud Center Distance from Top |
Total Length |
ASCON CAT. NO. |
|
E |
A |
C |
D |
F |
B |
H |
G |
J |
||
|
2.5 |
5.2 |
2.0 |
3.7 |
9 |
1.0 |
7 |
5 |
5 |
20 |
ACUS-05 |
|
4 |
6.4 |
3.1 |
4.8 |
11 |
1.0 |
7 |
6 |
6 |
22 |
ACUS-06 |
|
6 |
6.4 |
3.8 |
5.5 |
11 |
1.0 |
9 |
6 |
6 |
24 |
ACUS-07 |
|
10 |
6.4 |
4.4 |
6.2 |
11 |
1.3 |
9 |
6 |
6 |
24 |
ACUS-08 |
|
16 |
6.4 |
5.3 |
7.1 |
11 |
1.6 |
12 |
8 |
6 |
30 |
ACUS-09 |
|
25 |
6.4 |
7.0 |
9.0 |
13 |
2.0 |
12 |
12 |
8 |
37 |
ACUS-10 |
|
8.4 |
7.0 |
9.0 |
13 |
2.0 |
12 |
12 |
8 |
37 |
ACUS-52 |
|
|
35 |
6.4 |
8.0 |
10.0 |
15 |
2.0 |
12 |
12 |
8 |
37 |
ACUS-11 |
|
8.4 |
8.0 |
10.0 |
15 |
2.0 |
12 |
12 |
8 |
37 |
ACUS-12 |
|
|
50
|
6.4 |
9.2 |
11.2 |
16 |
2.0 |
16 |
12 |
9 |
45 |
ACUS-13 |
|
8.4 |
9.2 |
11.2 |
16 |
2.0 |
16 |
12 |
9 |
45 |
ACUS-14 |
|
|
10.2 |
9.2 |
11.2 |
16 |
2.0 |
16 |
12 |
9 |
45 |
ACUS-15 |
|
|
70 |
8.4 |
11.6 |
13.8 |
20 |
2.3 |
18 |
15 |
13 |
56 |
ACUS-16 |
|
10.2 |
11.6 |
13.8 |
20 |
2.3 |
18 |
15 |
13 |
56 |
ACUS-17 |
|
|
12.7 |
11.6 |
13.8 |
20 |
2.3 |
18 |
15 |
13 |
56 |
ACUS-18 |
|
|
95 |
10.2 |
12.8 |
15.6 |
23 |
2.8 |
20 |
15 |
13 |
58 |
ACUS-19 |
|
12.7 |
12.8 |
15.6 |
23 |
2.8 |
20 |
15 |
13 |
58 |
ACUS-20 |
|
|
120
|
10.2 |
14.8 |
17.8 |
26 |
3.0 |
22 |
16 |
14 |
62 |
ACUS-21 |
|
12.7 |
14.8 |
17.8 |
26 |
3.0 |
22 |
16 |
14 |
62 |
ACUS-22 |
|
|
16.2 |
14.8 |
17.8 |
26 |
3.0 |
22 |
16 |
14 |
62 |
ACUS-23 |
|
|
150
|
10.2 |
16.0 |
19.6 |
28 |
3.6 |
26 |
18 |
15 |
70 |
ACUS-24 |
|
12.7 |
16.0 |
19.6 |
28 |
3.6 |
26 |
18 |
15 |
70 |
ACUS-25 |
|
|
16.2 |
16.0 |
19.6 |
28 |
3.6 |
26 |
18 |
15 |
70 |
ACUS-26 |
|
|
185 |
12.7 |
18.0 |
22.0 |
32 |
4.0 |
28 |
21 |
21 |
83 |
ACUS-27 |
|
16.2 |
18.0 |
22.0 |
32 |
4.0 |
28 |
21 |
21 |
83 |
ACUS-28 |
|
|
225 |
16.2 |
20.0 |
24.0 |
35 |
4.0 |
32 |
24 |
24 |
95 |
ACUS-231 |
|
240 |
16.2 |
22.0 |
26.0 |
38 |
4.0 |
34 |
24 |
24 |
97 |
ACUS-29 |
|
20.3 |
22.0 |
26.0 |
38 |
4.0 |
34 |
24 |
24 |
97 |
ACUS-30 |
|
|
300 |
16.2 |
24.0 |
28.7 |
42 |
4.7 |
37 |
25 |
25 |
103 |
ACUS-31 |
|
20.3 |
24.0 |
28.7 |
42 |
4.7 |
37 |
25 |
25 |
103 |
ACUS-32 |
|
|
400 |
20.3 |
28.0 |
33.2 |
49 |
5.2 |
44 |
27 |
27 |
116 |
ACUS-33 |
|
500 |
20.3 |
30.0 |
36.0 |
53 |
6.0 |
48 |
27 |
27 |
120 |
ACUS-34 |
|
630 |
20.3 |
35.0 |
41.5 |
61 |
6.5 |
53 |
33 |
31 |
137 |
ACUS-35 |
|
800 |
BLK |
39.0 |
46.3 |
67 |
7.3 |
68 |
38 |
37 |
165 |
ACUS-62 |
|
1000 |
BLK |
43.0 |
53.8 |
76 |
10.8 |
90 |
45 |
45 |
210 |
ACUS-76 |
Recommended to use suitable crimping tools to perfect Joint.
