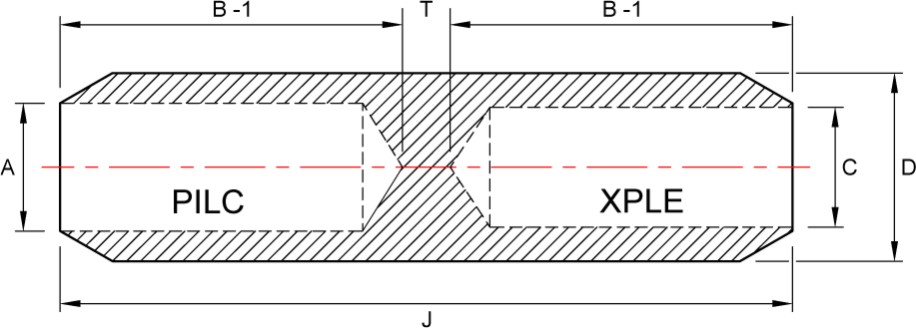

Al Transition Barrier Type Ferrule For PILC to XLPE Cable
(For PILC to XPLE Cable)
Dimensions in mm |
|||||||
Cable Size mm2 |
Inner Diameter |
Outer Dia. |
Barrel Length |
Barrel Thickness |
Total Length |
ASCON CAT. NO. |
|
|
PILC Side |
XPLE Side |
||||||
|
A |
C |
D |
B-1 |
T |
J |
||
|
25 |
7.0 |
7.2 |
10 |
20 |
4 |
44 |
AABT-25 |
|
35 |
8.0 |
8.3 |
10.8 |
22 |
4 |
48 |
AABT-35 |
|
50 |
9.3 |
10.1 |
13.0 |
25 |
4 |
54 |
AABT-50 |
|
70 |
11.6 |
10.2 |
16.0 |
31 |
4 |
66 |
AABT-70 |
|
95 |
12.9 |
12.0 |
17.1 |
34 |
4 |
72 |
AABT-95 |
|
120 |
14.8 |
13.7 |
19.6 |
37 |
6 |
80 |
AABT-120 |
|
150 |
16.1 |
15.1 |
21.2 |
38 |
6 |
82 |
AABT-150 |
|
185 |
18.0 |
16.6 |
23.7 |
43 |
6 |
92 |
AABT-185 |
|
225 |
20.6 |
18.6 |
27.0 |
50 |
6 |
106 |
AABT-225 |
|
240 |
22.0 |
19.3 |
28.0 |
52 |
6 |
110 |
AABT-240 |
|
300 |
24.0 |
21.8 |
31.0 |
60 |
6 |
126 |
AABT-300 |
|
400 |
28.0 |
25.0 |
36.0 |
70 |
6 |
146 |
AABT-400 |
|
500 |
30.0 |
28.2 |
41.0 |
75 |
8 |
158 |
AABT-500 |
|
630 |
35.0 |
31.7 |
46.0 |
84 |
8 |
178 |
AABT-630 |
|
800 |
39.0 |
35.7 |
51.0 |
98 |
8 |
204 |
AABT-800 |
|
1000 |
43.5 |
41.0 |
57.0 |
108 |
8 |
224 |
AABT-1000 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
