Al. Ferrule For XLPE HT Cable (DIN 46267) Standard
Extra Heavy Duty Long Barrel
for Crimping to Aluminium Conductors
(Round Stranded Compacted) for XPLE HT Cable 33 KV
Ref : IS 8308/1993 Table-II & DIN 46267
 Standard.png)
 Standard.png)
|

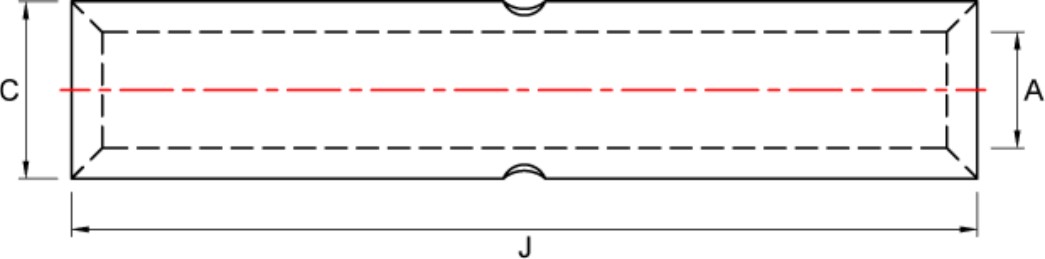

Dimensions in mm |
||||
Designation |
Barrel ID |
Barrel OD |
Total Length |
ASCON CAT. NO. |
|
A |
C |
J |
||
|
CIAX-16 |
5.6-5.9 |
10.0-10.5 |
55-65 |
ADI-16 |
|
CIAX-25 |
6.8-7.1 |
12-12.5 |
65-75 |
ADI-25 |
|
CIAX-35 |
8.0-8.3 |
14-14.5 |
80-90 |
ADI-35 |
|
CIAX-50 |
9.3-9.6 |
16-16.5 |
80-90 |
ADI-50 |
|
CIAX-70 |
11.2-11.6 |
18.5-19 |
100-110 |
ADI-70 |
|
CIAX-95 |
13.2-13.6 |
22-22.5 |
100-110 |
ADI-95 |
|
CIAX-120 |
14.7-15.1 |
23-23.5 |
105-115 |
ADI-120 |
|
CIAX-150 |
16.3-16.7 |
25-25.5 |
120-130 |
ADI-150 |
|
CIAX-185 |
18.3-18.7 |
28.5-29 |
120-130 |
ADI-185 |
|
CIAX-240 |
21.0-21.4 |
32-32.5 |
140-150 |
ADI-240 |
|
CIAX-300 |
23.3-23.7 |
34-34.5 |
140-150 |
ADI-300 |
|
CIAX-400 |
26.0-26.4 |
38.5-39 |
205-215 |
ADI-400 |
|
CIAX-500 |
29.0-29.4 |
44.0-44.5 |
205-215 |
ADI-500 |
|
CIAX-630 |
34.0-34.4 |
50.0-50.5 |
235-245 |
ADI-630 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
