Al. Ferrule Heavy Duty HT XLPE Cable 11KV
(In-Line Connectors) Type: Heavy Duty Long Barrel
For Aluminium Conductors HT XLPE Cable
|

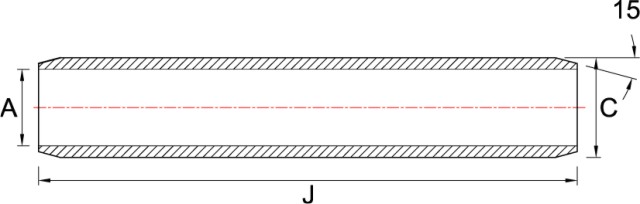

Dimensions in mm |
||||
Cable Size mm2 |
Barrel ID |
Barrel OD |
Total Length |
ASCON CAT.NO. |
|
A |
C |
J |
||
|
25 |
7.2 |
9.6 |
82 |
AAXL-1 |
|
35 |
8.3 |
11.1 |
90 |
AAXL-2 |
|
50 |
10.1 |
13.5 |
100 |
AAXL-3 |
|
70 |
11.2 |
14.5 |
104 |
AAXL-4 |
|
95 |
12.0 |
16.9 |
108 |
AAXL-5 |
|
120 |
13.7 |
19.0 |
112 |
AAXL-6 |
|
150 |
15.1 |
21.2 |
116 |
AAXL-7 |
|
185 |
16.6 |
23.9 |
128 |
AAXL-8 |
|
225 |
18.6 |
26.1 |
136 |
AAXL-9 |
|
240 |
19.3 |
27.2 |
148 |
AAXL-10 |
|
300 |
21.8 |
30.2 |
160 |
AAXL-11 |
|
400 |
25.0 |
34.8 |
182 |
AAXL-12 |
|
500 |
28.2 |
39.1 |
190 |
AAXL-13 |
|
630 |
31.7 |
44.4 |
200 |
AAXL-14 |
|
800 |
35.7 |
49.5 |
225 |
AAXL-15 |
|
1000 |
41.0 |
56.0 |
250 |
AAXL-16 |
*We reserve the right to make any technical changes or modify the content.
Recommended to use suitable crimping tools to perfect Joint.
